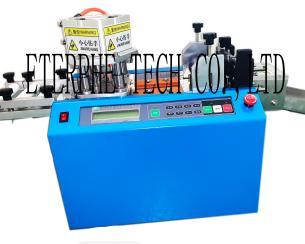

Name：PV module isolation strip punching machine

Introduction：

This equipment is designed and developed for punching and forming of EVA / isolation strip / backplane and other adhesive films used in photovoltaic double glass modules, half-cell modules and conventional modules. With the development of advanced processing technology, imported automatic parts are used in the control of the equipment to achieve the best performance
The product effectively solves the tedious work of manual production in module production;
The equipment is compatible with single hole, double hole and fixed length cutting. The program of three product forms can be freely switched, and one machine can be used for multiple purposes
Customized punching shape is acceptable

Details：

Model: c350-CQC

Power supply: AC220V

Power: 150W

Air pressure: 0.6 ~ 0.8 MPa

Connect the air line: ¢ 8mm

Dimension: L750 * w280 * h560mm

Equipment weight: 35.0kg

Specification range: material width: 30.0-80.0 mm

Material thickness: 0.25-0.40 mm

Forming hole: shape and size according to the drawing

Cutting accuracy: long side ≤ ± 0.2+（L*0.002mm)

Production speed: 30pcs/Min

( Product length changes, speed varies)

Processing number: 1

Processing material: EVA, TPT, PPE or other banded materials
