PV Ribbon L-shape Bend Forming Machine

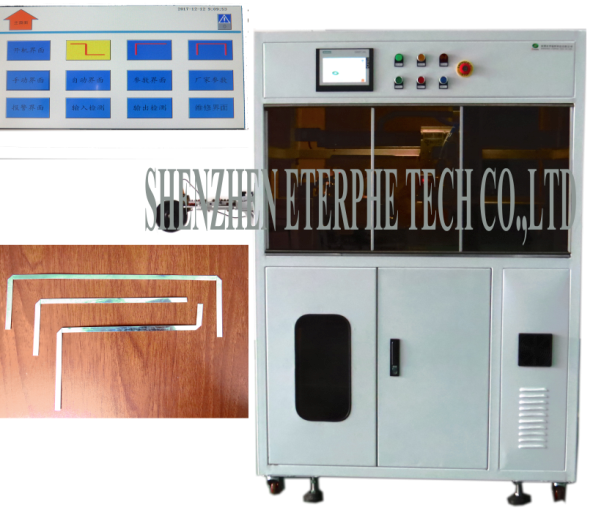

Name：PV Ribbon L Shape Multifunctional Bending machine

Introduction：

This equipment is mainly designed ,researched &developed for the conductor connection of the solar thin film module and silicon module. The integrated molding of PV Ribbon can effectively avoid the difficulties of the multiple bending point of manual welding or manual bending production , which gains our customer's praise.
The electrical components of the device all adopts the famous imported brand:Master control is Siemens PLC, Man-machine interface is Siemens , Pneumatic components are AirTAC and Multiple mobile modules, which can better safeguard the stability of its operation.
* Products can effectively solve the artificial tedious work;
* Support for various bending shapes;
* Products can improve the quality of solar module further and avoid the defects caused by welding.

Details：

Technical parameters:

1. Model: FL - MF

2. Power supply: AC220V 0.5 kw

3. Air pressure: 0.6 ~ 0.8 Mpa

4. Air line connection : Φ 10 mm

5. Dimensions: L1750 mm * W900 mm *H 1800 mm

6. Weight: About 300 kg

7. Forming length : Short side: 30-100 mm

Long side: 100-550 mm (The special specifications of the long/short side can be customized)

8. Forming Angle: 90 ° ± 1°

Thickness ≤ Ribbon with superimposition value + 0.1 mm

9. Cutting thickness: 0.20-0.50 mm

10.Suitable for width: 4.0-8.0 mm

11.Cutting precision: Long side ≤ ±1+（L*0.002mm)

Short side ≤ ±0.5+（L*0.002mm)

12. Capacity: 6-12 PCS/Min, the production capacity will be changeable with the specifications of the different bending shape of PV Ribbon

13. Processing materials: photovoltaic ribbon or tin plating copper strip

14. The package of Raw material:

Disc package size: Inside diameter Φ20 mm

Outer diameter ≤ 400 mm

The weight of spool package: 5/10/20 KG

Spool package size: Inside diameter Φ20 mm

Outside diameter≤ Φ 300 mm
