PV Ribbon Cutting Machine
Name：PV Ribbon door glyph bend cutting machine
Introduction：

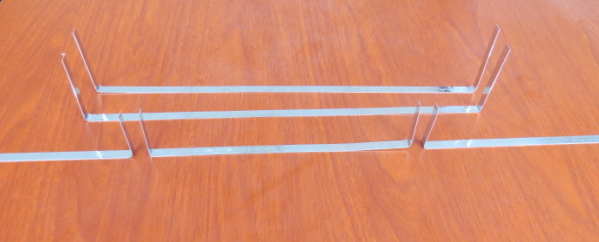

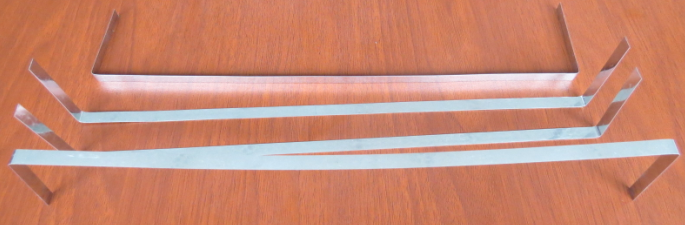

This equipment is designed &developed for the molding of PV Bus used in the Photovoltaic double glass modules and double junction box . With advanced processing technology, it adopts these imported automation accessories in the aspect of control to achieve the best performance of the operation . ◎When the product effectively solves the artificial production of homework in the production of module ; ◎Single and dual bending can be programmed to switch freely to replace the relevant specification more conveniently.
Details：
Model: C350 - SZM
Power Supply : AC220V 210W
Air pressure:0.6~0.8 Mpa
Air line connection: ¢8 mm
Dimension: (L) 750 *(W) 280*(H) 460mm
Weight: 28.5 KG
Range of specifications: width: 2.5- 10.0 mm; thickness: 0.25- 0.40 ㎜

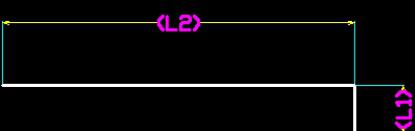

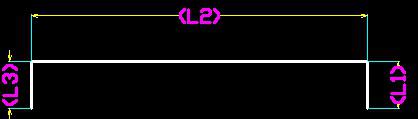

Forming specifications: short side: 15-100 mm long side: 50-350 mm (forming short & long side's size can be customized )
Forming Angle: 90 °±5°
Production speed:About 100 PCS/Min
Processing article number: 1-6PCS
Processing material: tin- plated copper strip or other strip material
