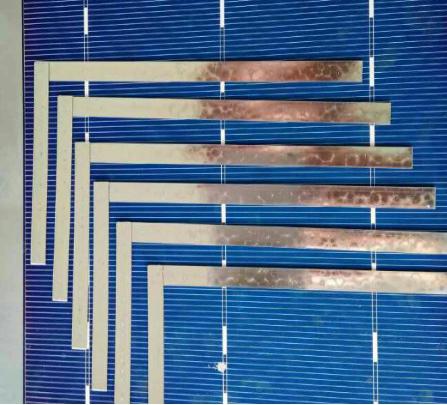

PV Ribbon Automatic L-shaped welding machine

Name：PV Ribbon Automatic Single overlap welding machine

Introduction：

PV Ribbon Automatic L-shaped Single overlap welding machine DH-1ZD

Details：

Model: DH-1ZD

Power Supply：AC220V50/60Hz 0.5KW

Air pressure ：<0.8 Mpa

Air line connection ：¢10mm

Welding type ：Ceramic heater

Equipment capacity：500pcs/H（Number of Single location of welding）

Number of strip processed：1pcs（Independent operations of single location ）

Processing materials：PV Ribbon

Applicable width：3.0-8.0mm

Applicable thickness：0.2-0.6mm

Forming size:90 degree ≤ ±1 degree

Thickness ≤ Ribbon with superimposition value

Dimensions：L800mm*W600mm*H 1200m

Weight：About 150Kg
