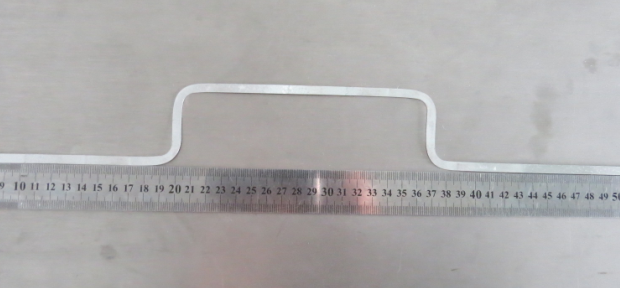

PV Ribbon L-shape Bend Forming Machine

Name：PV Ribbon Right &Left bend forming machine

Introduction：

PV Ribbon Right &Left bend forming machine that is customized to our customers.

Details：

1.Model: ：LR-1
2.Number of strip processed：1Pcs
3.Specification range：Width：5.0-8.0mm
                       Thickness：0.35-0.45mm
4.Processing materials：PV Ribbon or tinned copper strip
5.Forming semidiameter：R8mm
6.Processing speed ：1pcs/min
7.Spool size：Φ20mm
8.Air pressure ： >0.6Mpa
9.Air line connection ：¢10mm
10.Power Supply：380V 1000W 50Hz(Three phase five wire)
11.Hydraulic system：Litres ：≥40L
                     Brand: 46 # (anti-wear hydraulic oil)
12.Environment temperature：5℃---40℃
13.The machine running noise:80dB
14.Dimensions：（L)2000*(W)620*(H)1200(mm)
15.Weight：About 220kg
