PV Ribbon Cutting Machine
Name：PV Ribbon punching & cutting machineC350-SK
Introduction：

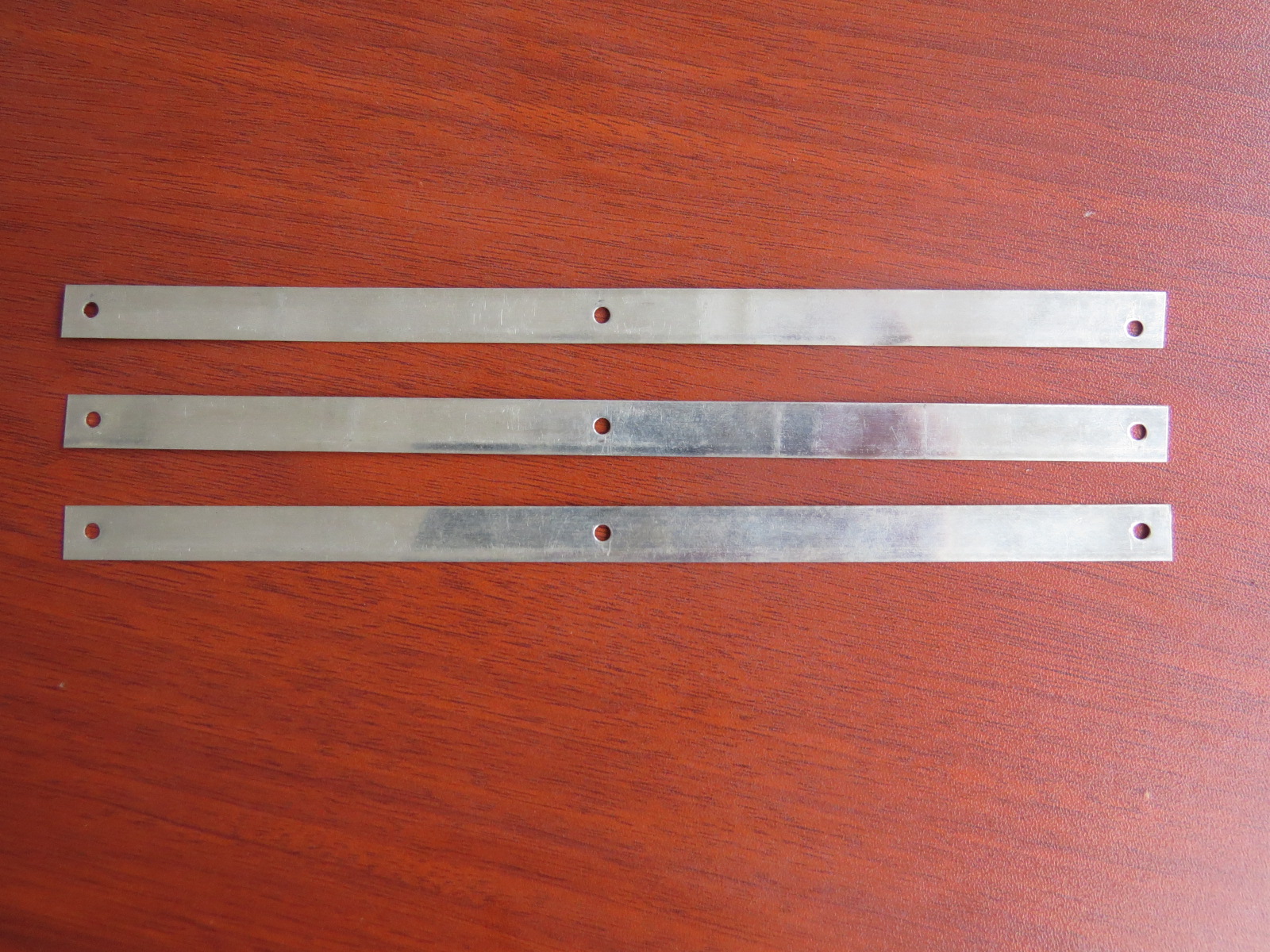

The machine is designed & researched for shaping PV Bus used in the special junction box of PV module.It also can be applied to cut and punch Tin & nickel ribbon etc.With advanced processing technology, it adopts these imported automation accessories in the aspect of control to make the operation achieve the best performance. ◎When the product effectively solves the artificial production of homework in the production of module; ◎After punching, ribbon is more solid to be connected with the welding place and can also be used for screw connection; ◎The products on welding quality also have further ascension, which can effectively avoid the generation of virtual welding.
Details：
Model: C350-SK
Power Supply : AC220V150W
Air pressure: > 0.6 Mpa
Air line connection: ¢10 mm
Dimension: (L) 650 * (W)650 ** (H) 450mm
Weight: 35.0 KG
Range of specifications: width: 4.0- 20.0 mm; thickness: 0.10 -0.45 ㎜
(accept customers' special customized size)
Forming puch hole: mainly round (accept customers' special customized size and shape)
Production speed: 6-12 pcs/min
Processing number: 1pcs
Processing material: tin-plated copper stript or other strip material
