PV Ribbon Cutting Machine

Name：PV Ribbon door glyph bend cutting machine

Introduction：

This equipment is designed &developed for the molding of PV Bus used in the photovoltaic double glass modulets and double junction box . With advanced processing technology, it adopts these imported automation accessories in the aspect of control to make the operation achieve the best performance.
◎When the product effectively solves the artificial production of homework in the production of module ;

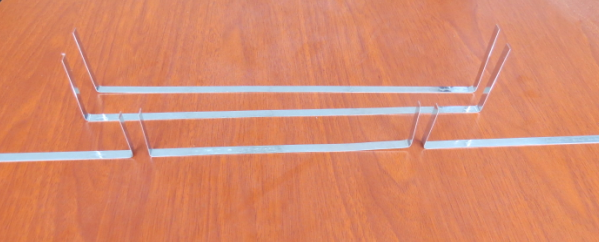

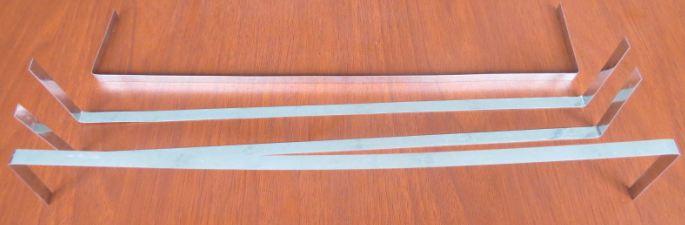

◎Single and dual bending can be programed to switch freely to replace the relevant specification more conveniently.

Details：

Model: C350 - SZM

Power Supply : AC220V150W

Air pressure:> 0.6 Mpa

Air line connection: ¢10 mm

Dimension: (L) 750*(W) 280*(H) 460mm

Weight: 28.5 KG

Range of specifications: width: 2.0- 8.0 mm; thickness: 0.10- 0.60 ㎜

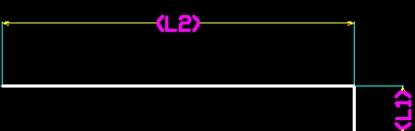

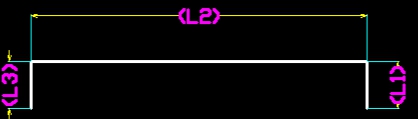

Forming specifications: short side: 20-1000 - mm long side: 300 mm or less (Forming length size can be customized)

Forming Angle: ９０°±1°

Production speed: 100 PCS/Min

Processing strips: 1-6 PCS

Processing material: tin- plated copper strip or other strip material
