PV Ribbon Cutting Machine

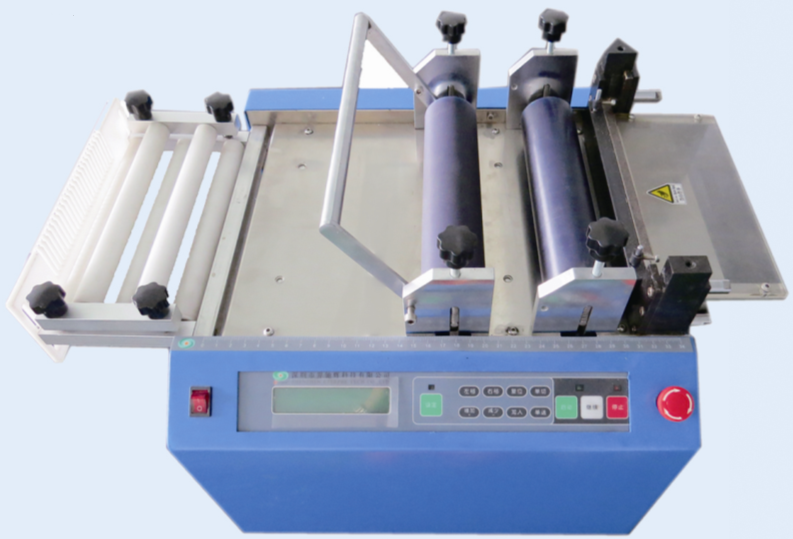

Name：PV Ribbon Cutting machine C350-WS

Introduction：

This machine is developed for cutting and processing of tinned copper strip-interconnector specially used for solar PV. It adopts single board computer for controlling, and is equipped with advanced stepping motor & import PU material conveying roller.It covers the functions like high cutting precision of tinned copper strip, straight material surface, smooth kerf and automatic counting. Its function and cutting efficiency reach the advanced international level. It can greatly improve the processing efficiency and reduce the waste of tinned copper strip.
§ The machine has wide effective cutting width, so its capacity has been increased greatly.
§ It can be applied to solder strip manufacturers and large module factories.

Details：

Model: C350-WS

Power Supply: AC220V 300W

Dimensions: (L)450*(W)350*(H)320mm

Weight: 42KG

Processing strips：1-24 strips

Processing materials: Tinned copper strip or other strip-type materials

Cutting length: 0.1-9999.9mm

Cutting width: 0.8-10.0mm

Cutting thickness:0.10-0.40mm

Cutting accuracy:±(0.2+L*0.002)mm

Cutting speed: L=100m, 1200pcs/Min

Information storage: 10 strips
