PV Ribbon Tin-plating Machine

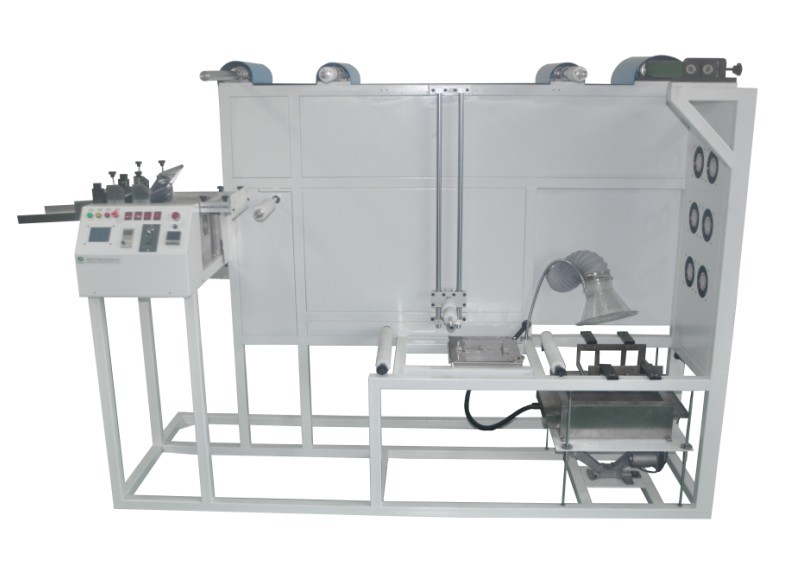

Name：PV Ribbon Tinning&Cutting Machine CT10

Introduction：

This machine combines tinning and cutting together,saving intermediate processing( the feeding&discharging, guide plate, and many other links ),avoiding bend of the welding strip caused by discharging & reducing the production of welding with rocke .With its reasonable structure,welding strip is more flat.
The machine can greatly improve production efficiency,reduce head to tail waste caused by wearing material so that lowering the waste of materials.Perfect combination of equipment can greatly simplify the production process, thus more effectively save the operator time and Labour intensity.

Details：

Patent product No. 201320788190.9

Model: CT10

Power supply: AC220V 4000W

Dimensions:(L)2200*(W)700*(H)1500mm

Weight: 300KG

Processing strips: 1-24 strips

Processing materials: Tinned copper strip or other strip-type material

Temperature control:±2 centigrade

Tin-melting time: 30Min (35KG)

Plating thickness: 0.015-0.035mm

Processing speed: 0-6M/Min (maximum speed)
