 PV Ribbon L-shape Bend Forming Machine
Name:PV Ribbon L-shape Forming Machine MB140
Introduction:
This equipment is designed,researched &developed for the current solar PV busbar & relevant products that is need to be molding(L-Shaped).With advanced processing-technology researching equipment, adopting imported automation accessories in the aspect of control , making the equipment operation to achieve the best performance.
§  Products on the module production effectively solve the tedious work of manual welding;
§ Products of components also has further improvement on quality, effectively avoiding the generation of virtual welding;
§ Modular design is to make it change the relevant specification more conveniently.
Details:
Patent No.:201320789154.4
Model: MB140
Power Supply: AC220V 240W
Air pressure< 0.8 Mpa
Air line connection :¢8mm
Dimensions: (L)1400 * (W) 620* (H) 1200 (mm)
Weight: 120KG
Number of strip processed: 1pcs
Processing materials: Tinned copper strip or other strip-type materials

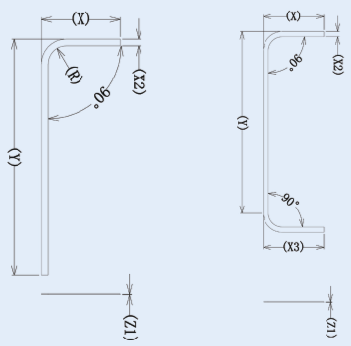

Forming specification: the short side :≥60mm, the long side <9999.9mm
Forming angle:90°±1°
Forming semidiameter:R=8-25mm(can be customized)
Cutting width :1-10mm
Cutting thickness: 0.20-0.60 mm
Cutting accuracy: ±(0.2+L*0.002)mm
Processing speed: L=220mm,10pcs/min
Information storage: 10 strips
