Shenzhen Eterphe Tech Co.,Ltd --Solar photovoltaic welding Tin-plating Machine series,PV Ribbon cutting machine series, PV Ribbon L shape bending machine series, PV Ribbon busbar overlap welding machine series,solar cell welding machine series ，the development and customization of some special machine etc. Thereinto, our self-developed bending machine series & PV Ribbon busbar automatic overlap welding machine series,which improve the original production technology &fill the blank of the industry & receive the big welcome of many PV module & PV Ribbon manufacturers.

ADD：2/F,Block 1, No.65 Hongyin Road, Liyu River Industrial district, Lou village Guangming new district, Shenzhen, China
TEL：0086-0755-27491292
FAX：0086-0755-27491291
Http://www.eterphe.com
E-mail:sales@eterphe.com

PV Ribbon Tin-plating Machine

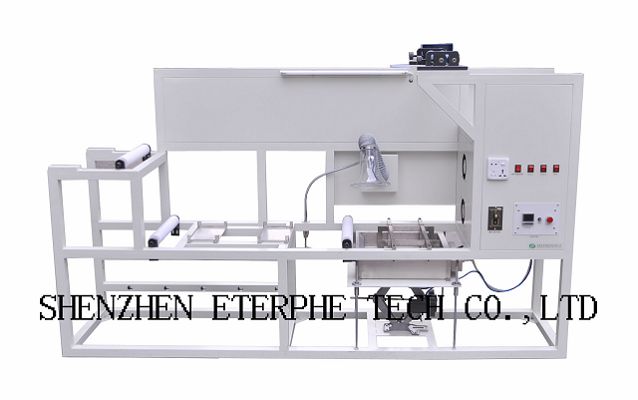

Name：PV Ribbon Tin-plating Machine(TE20)

Introduction：

　　This machine is designed for the processing of tinned copper strip specially applied to solar energy.
　　The machine could complete tin-plating process with drawer collector and rotary collector, and it is easy to control on the whole process for the simple structure and convenient operation.

Details：

Model: TE20

Power supply: 220V4000W

Dimensions:(L)2000×(W)700×(H)1400(mm)

Weight:200kg

Processing strips:1-8 strips

Temperature control: ±2℃

Tin-melting time: 30Min (35KG)

Processing speed:0- 3M/Min
